How To Customize The Appropriate Robot Solution?
RBTC can customize suitable robot solutions according to your needs, including welding, palletizing, spraying, injection molding, die-casting, stamping, CNC lathes, grinding and ground rails, etc.Contact Us
Application Case
- Welding
- Grinding
- Palletizing
- Spraying
- Injection Molding
- Die Casting
- Stamping
- Cnc Lathes
- Ground Rails

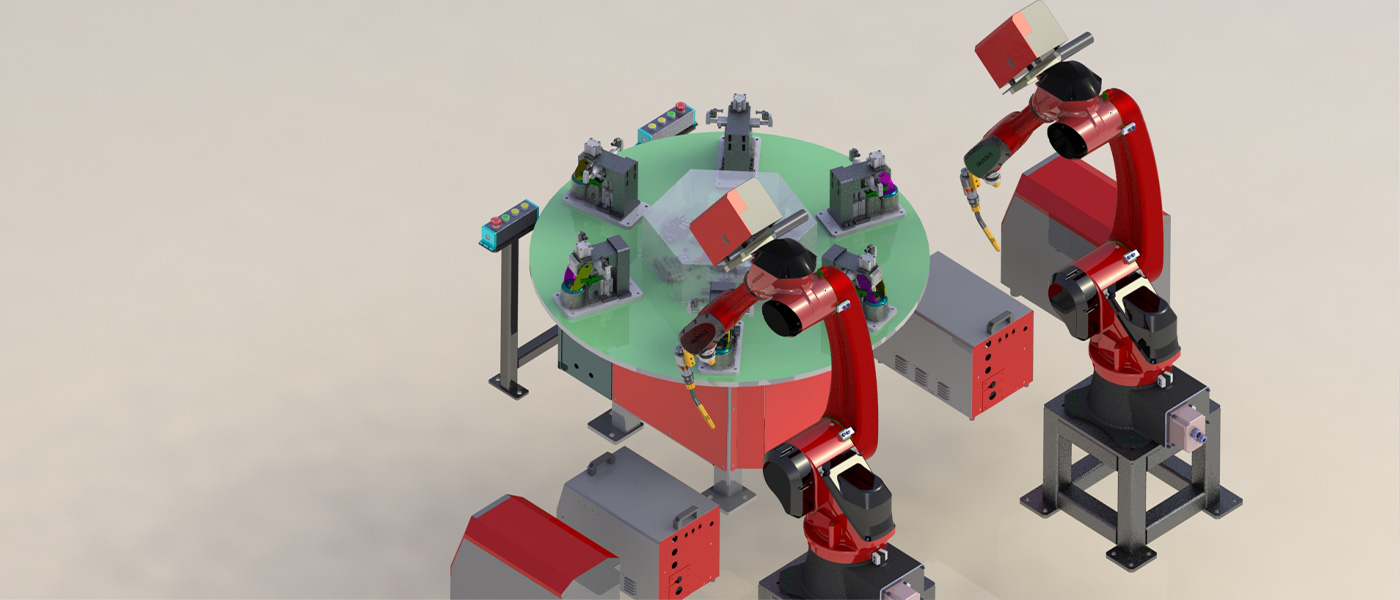

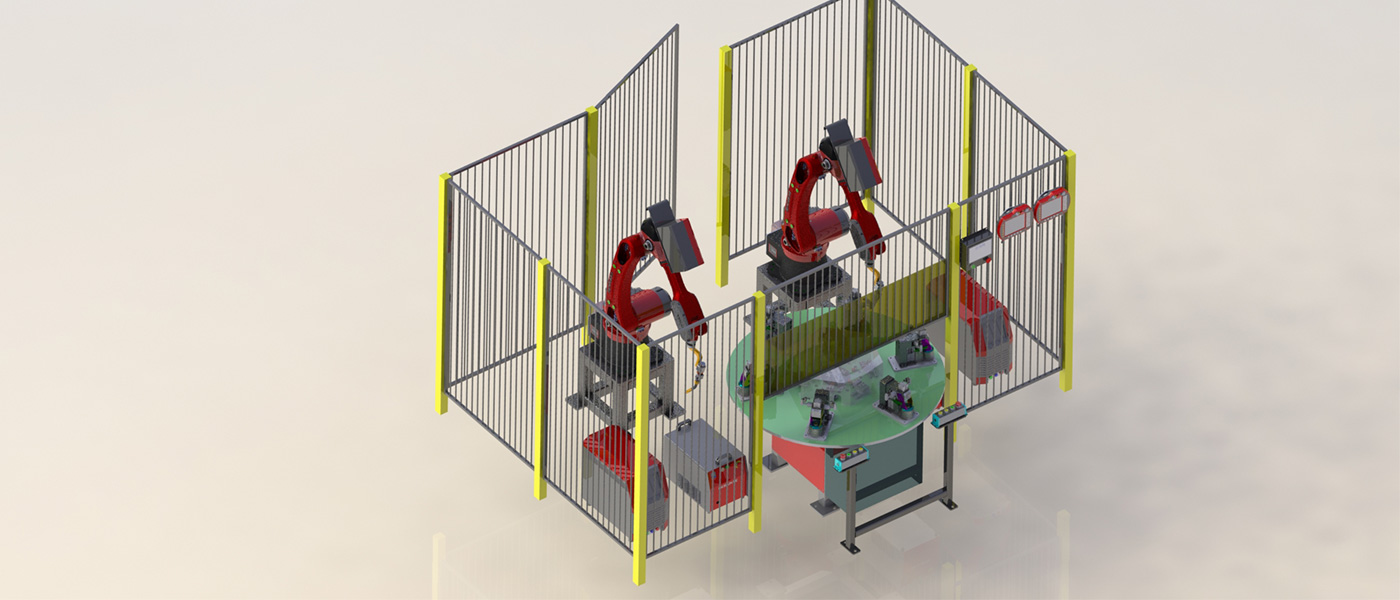

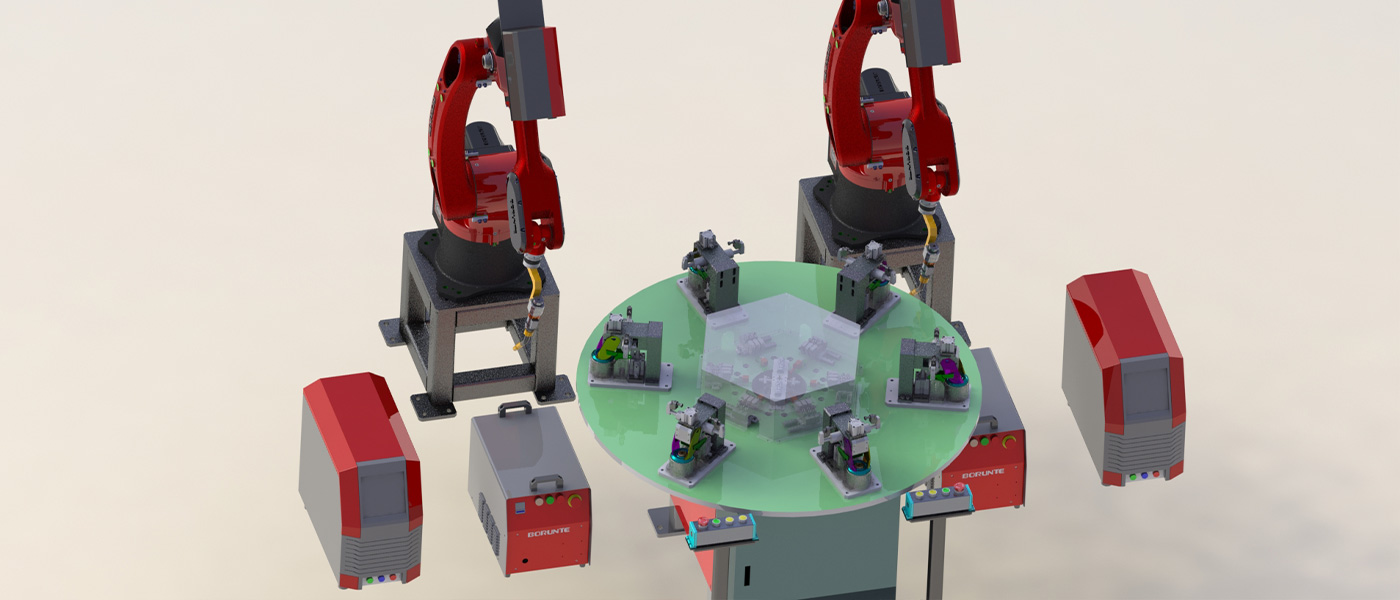

Caster Bracket Welding Project
This project uses a MIG350ixr single-pulse welding machine and a 6-station 1800W splitter turntable as the driving tooling power, and uses two 10kg-class BRTIRUS1510A six-axis industrial robots to achieve the entire automated welding, which greatly avoids the pulse arcdamage to manual work and is more efficient than traditional manual work.
Main product:
BRTIRUS1510A six-axis robot

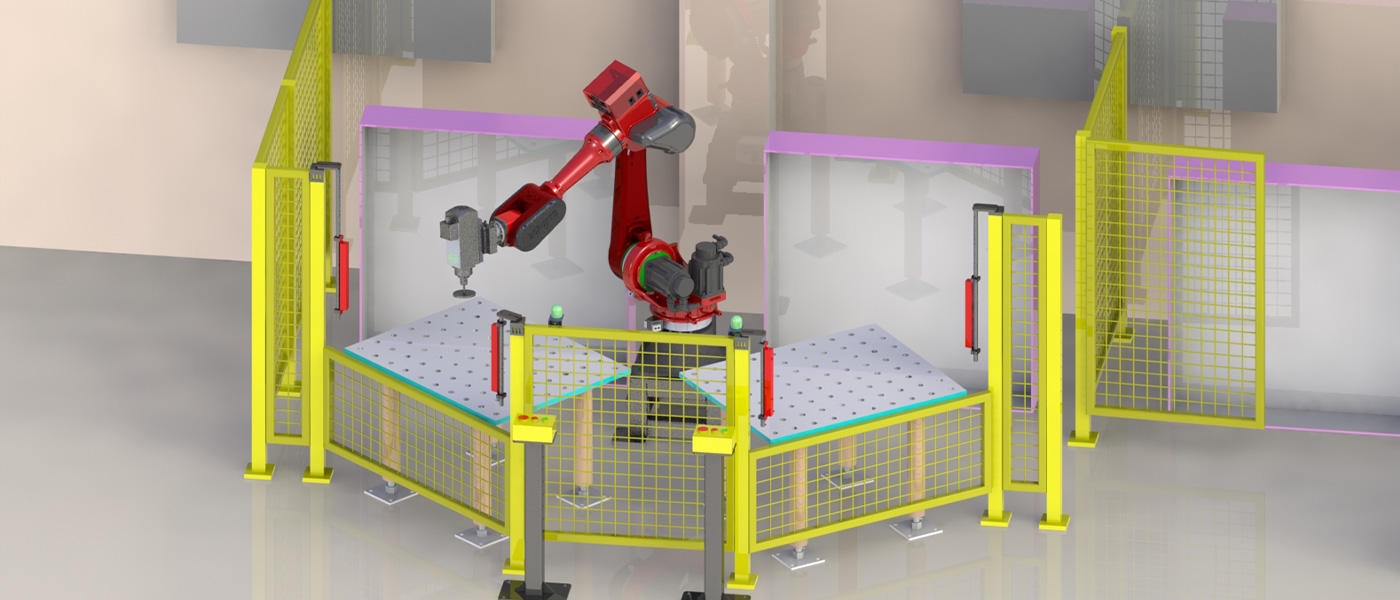

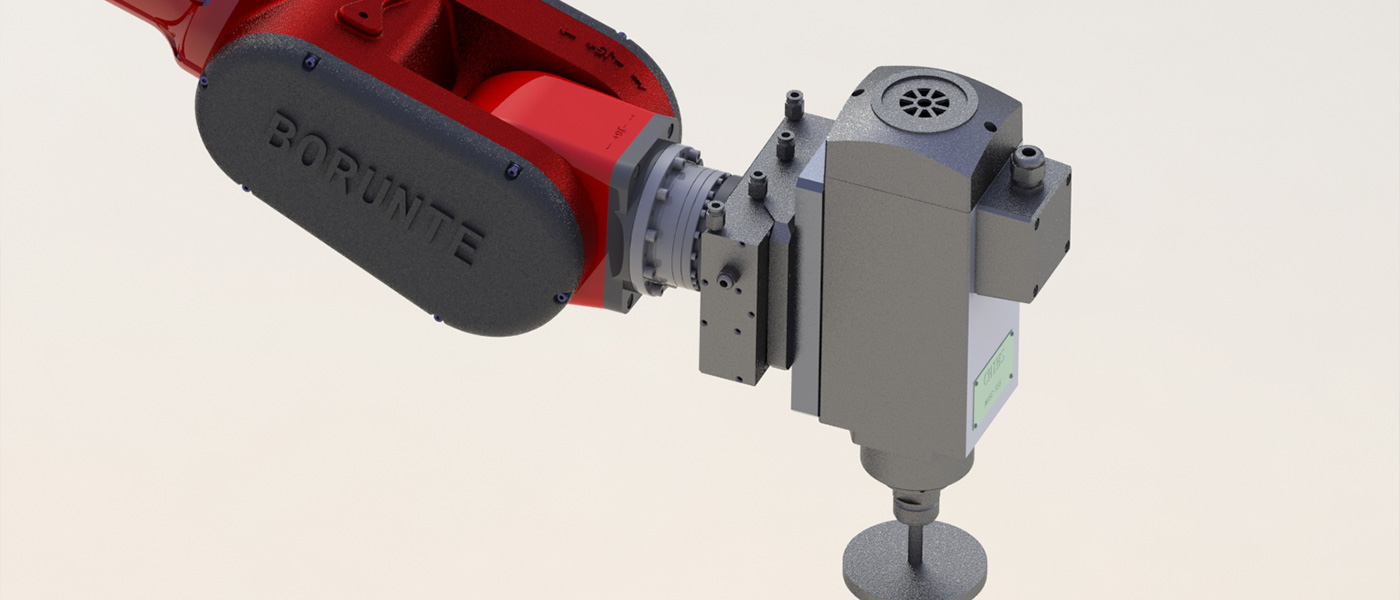

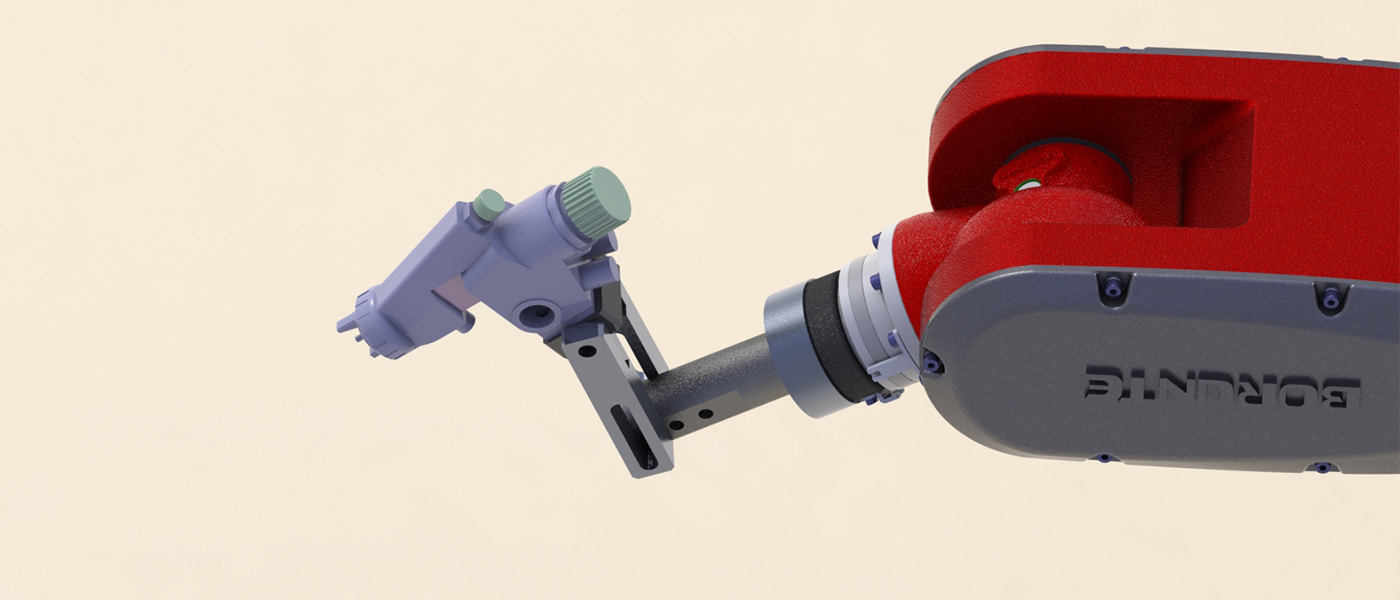

1820A Robot for Grinding Application
For the grinding project, the electric spindle grinding fixture is driven by a BRTIRUS1820A six-axis robot, when the grinding is completed,the material is manually loaded and unloaded onto the positioning table.
Main product:
BRTIRUS1820A six-axis robot

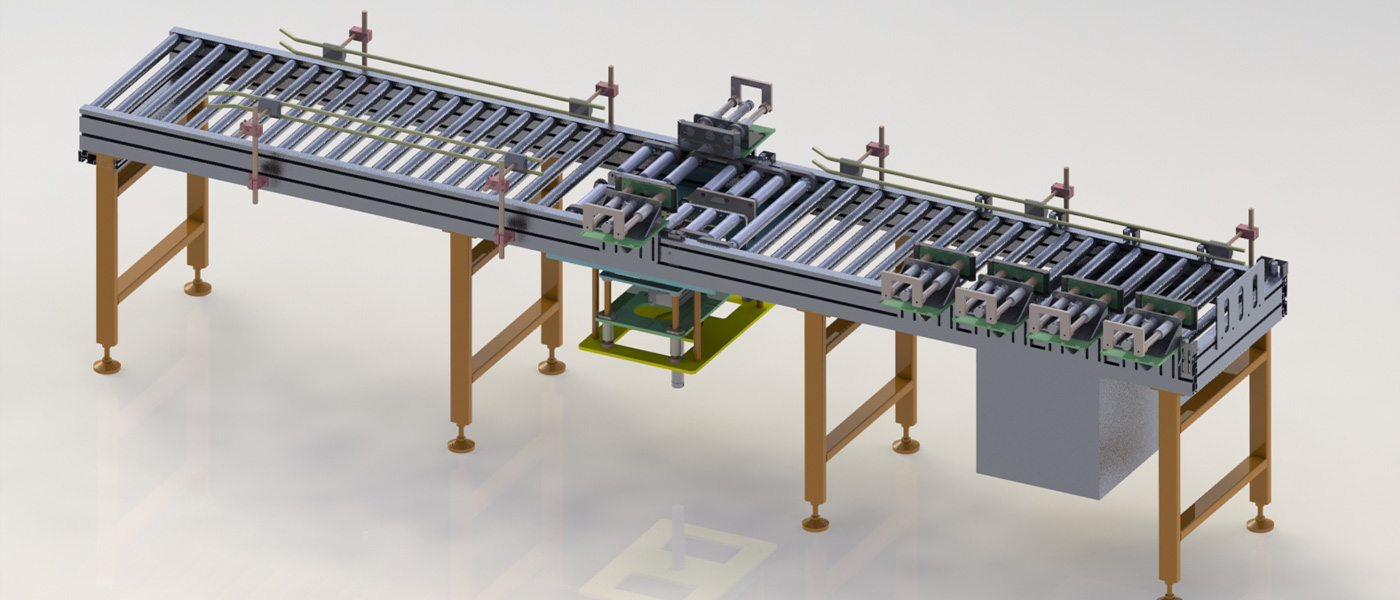

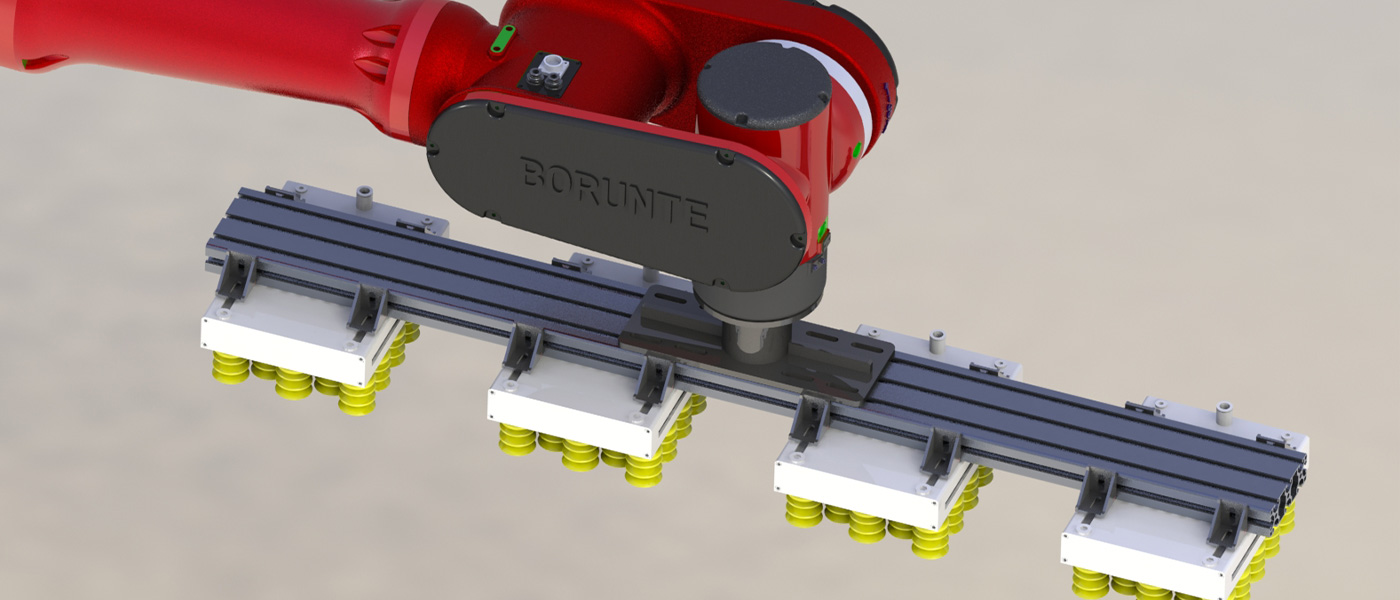

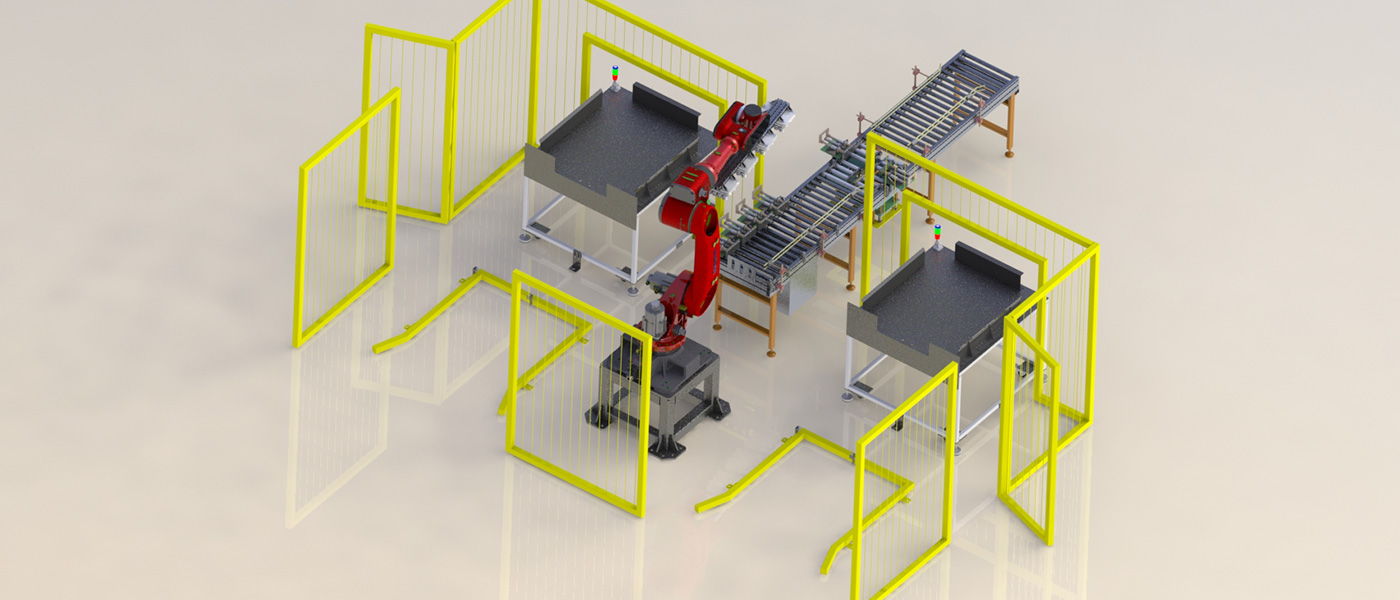

2550A Robot for Carton Box Palletizing
This project uses the BRTIRUS2550A six-axis robot and roller conveyor line to replace manual palletizing of cartons.
Main product:
BRTIRUS2550A six-axis robot

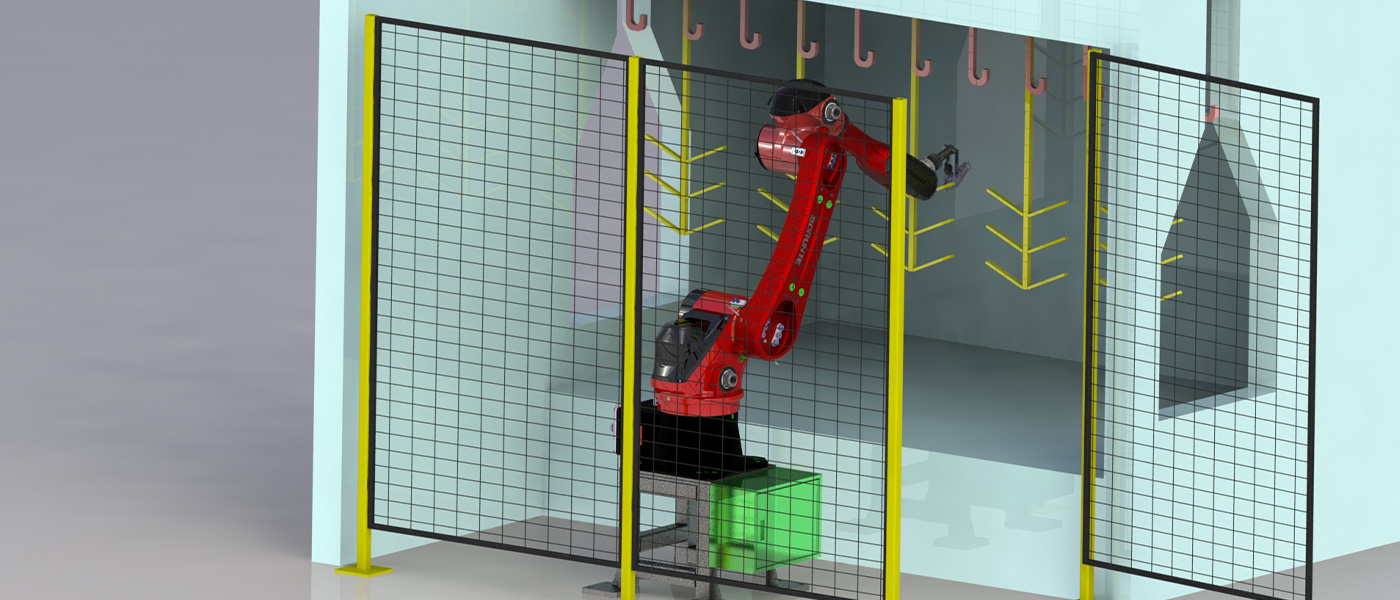

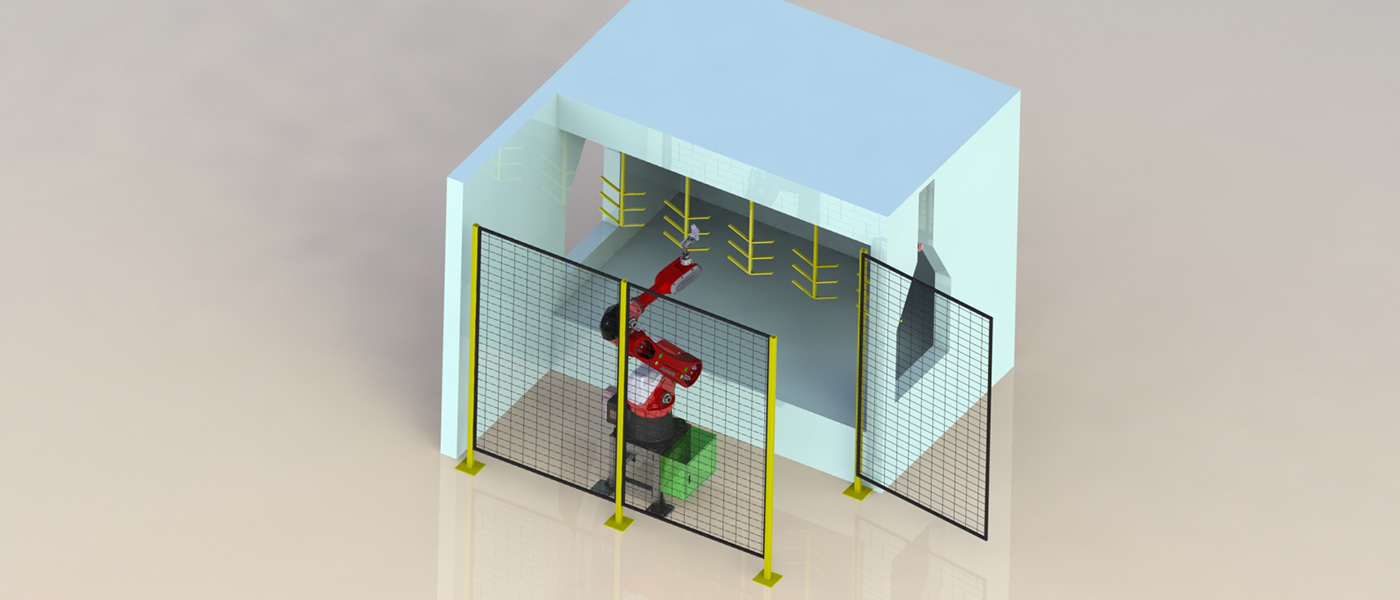

Robot for Hanging Painting Line Project
In the hanging painting line project, when the sensor testing that the hanger flows to the spraying area, the BRTIRUS1510A six-axis robot follows the trajectory of the assembly line tospray paint onto the product.
Main product:
BRTIRUS1510A six-axis robot

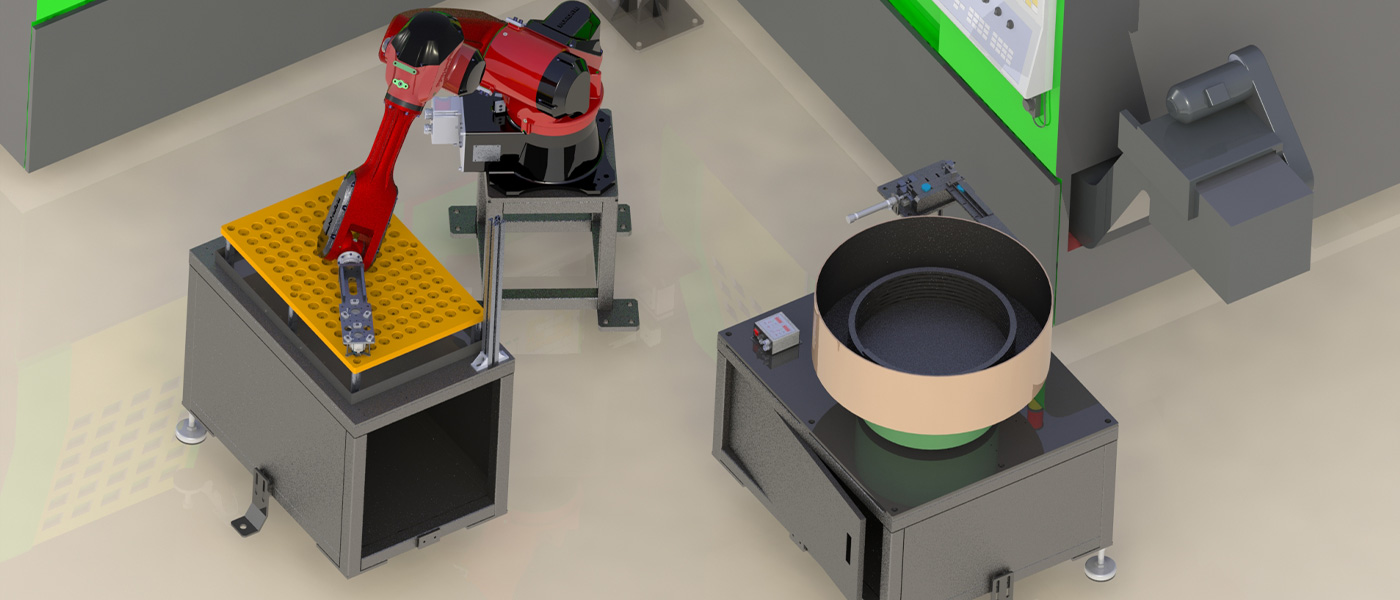

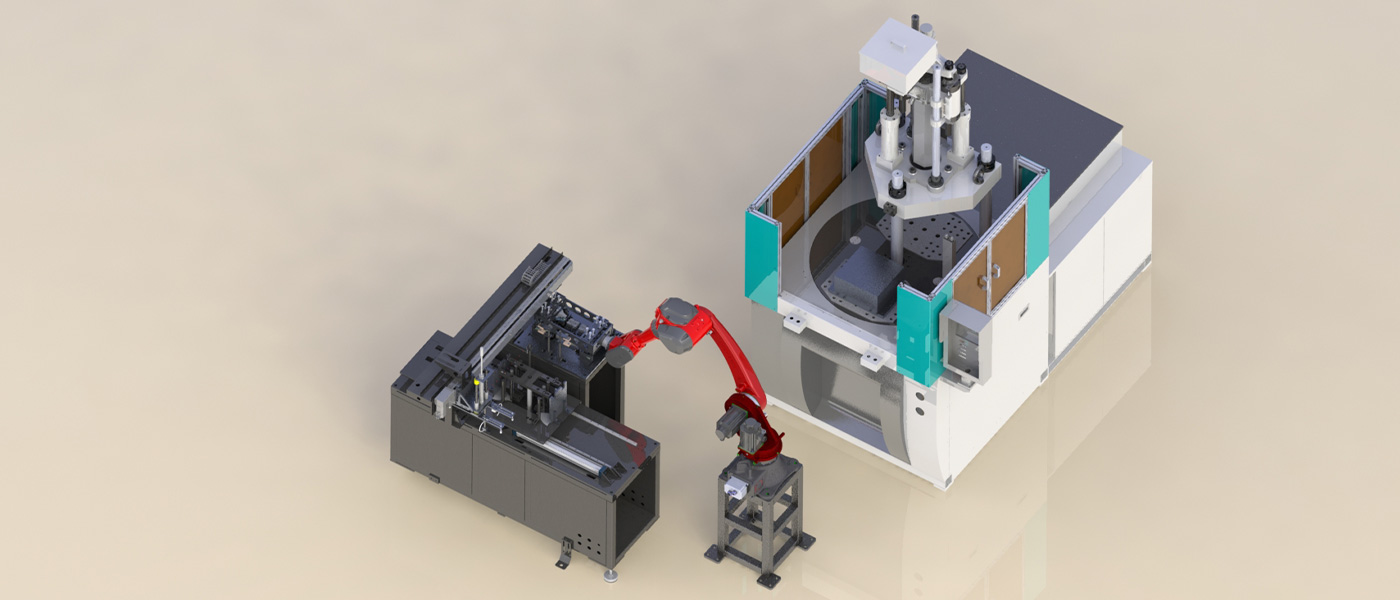

Knife Mold Insert and Removal for Vertcal Injection Molding Machine
This project uses the BRTIRUS1820A six-axis robot and a double-station auto feeder to replace manual labors for vertical injection molding insertion and removal application.
Main product:
BRTIRUS1820A six-axis robot

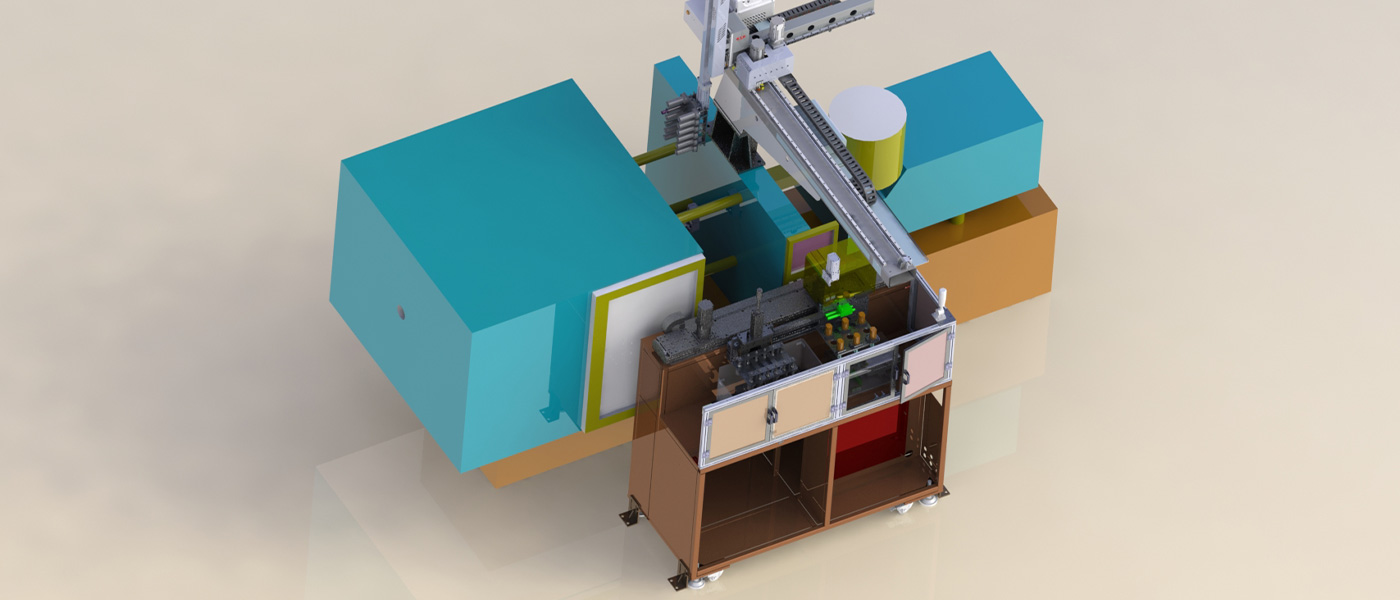

Robot for 6 Cavities Pet Bottles Take-out and Cut Runners Application
The project uses robot model BRTNN11WSS3P to take bottle from injection molding machine, and put bottle into the cutting table to cut the runner, and then take out the final product.
Main product:
BRTNN11WSS3P I.M.M robot

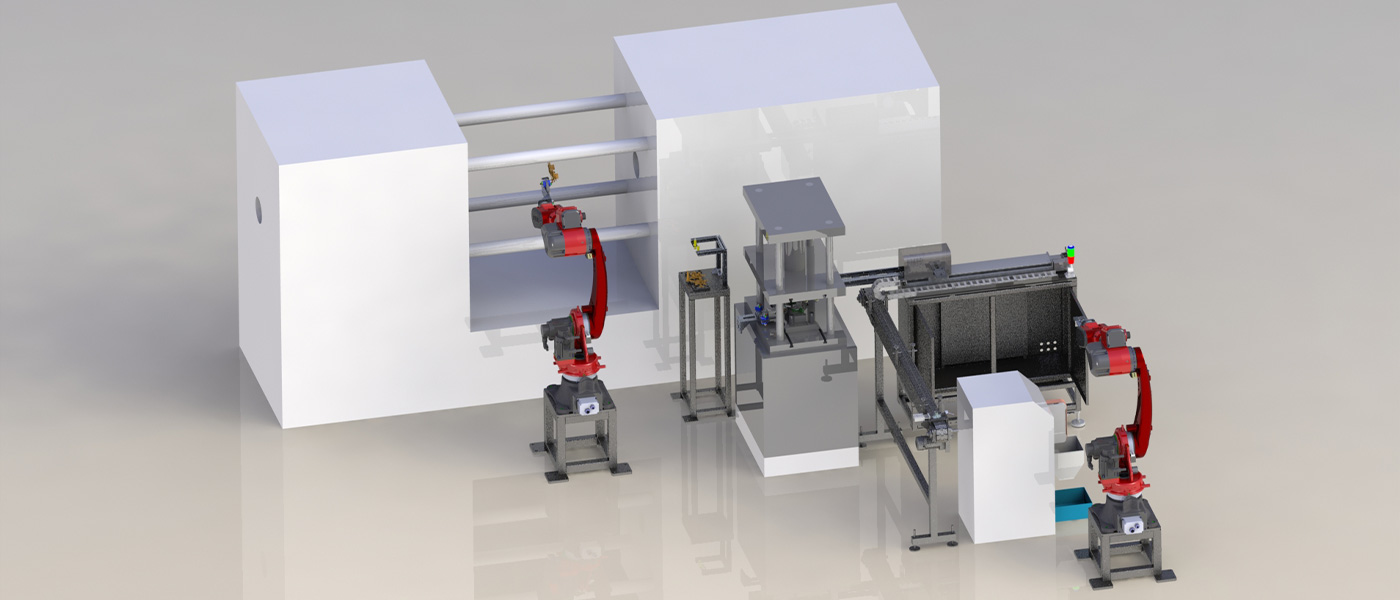

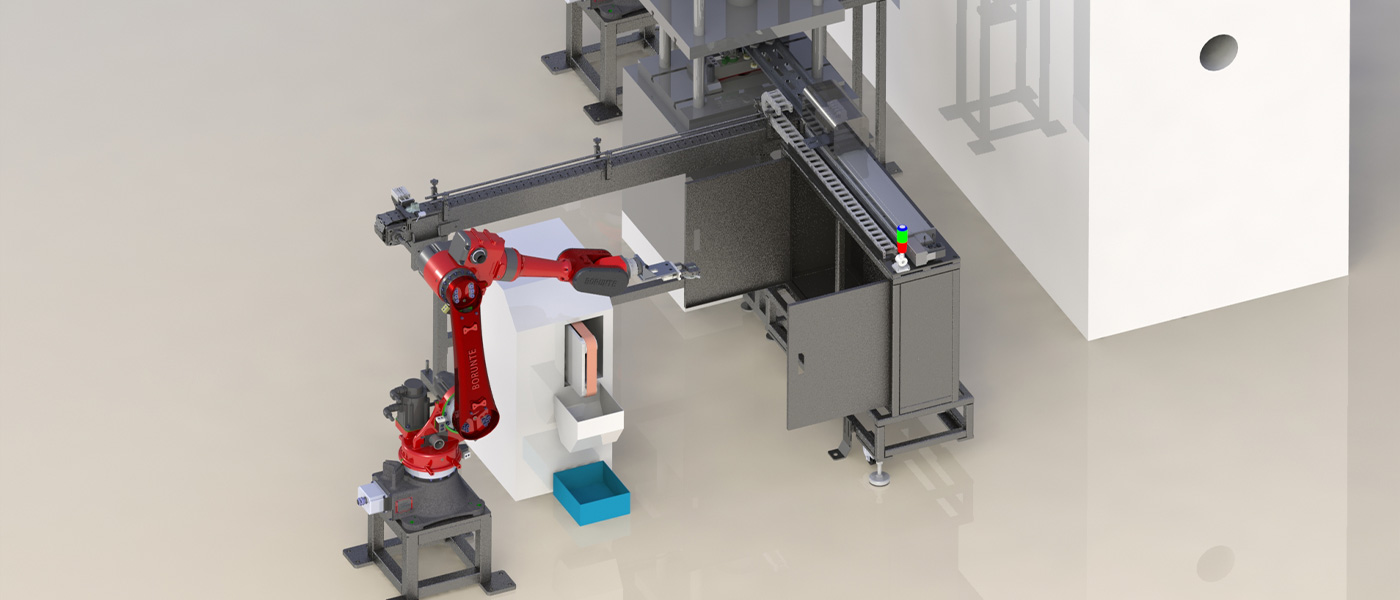

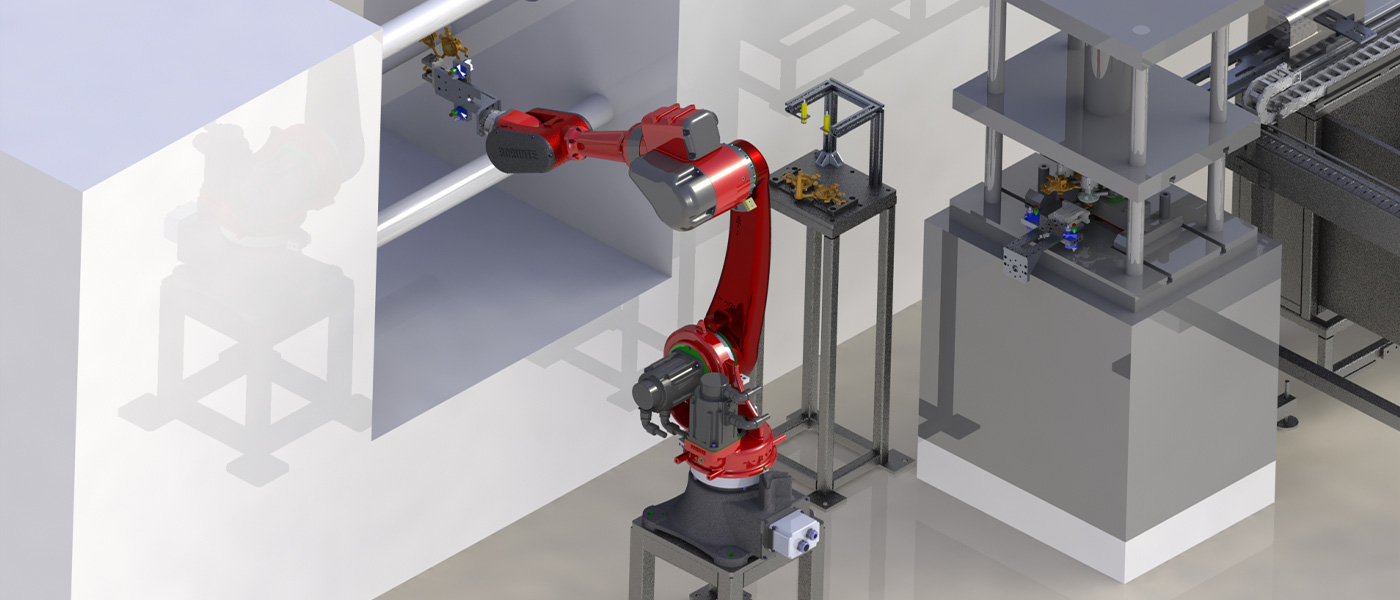

1820A Robot for Die Casting Machinery Parts Take-out, Punching and Polishing Application
This project uses the BRTIRUS1820A six-axis robot for die casting machinery parts take out, punching runner material, grinding parts surface, equipped with a stainless steel conveyor line.
Main product:
BRTIRUS1820A six-axis robot

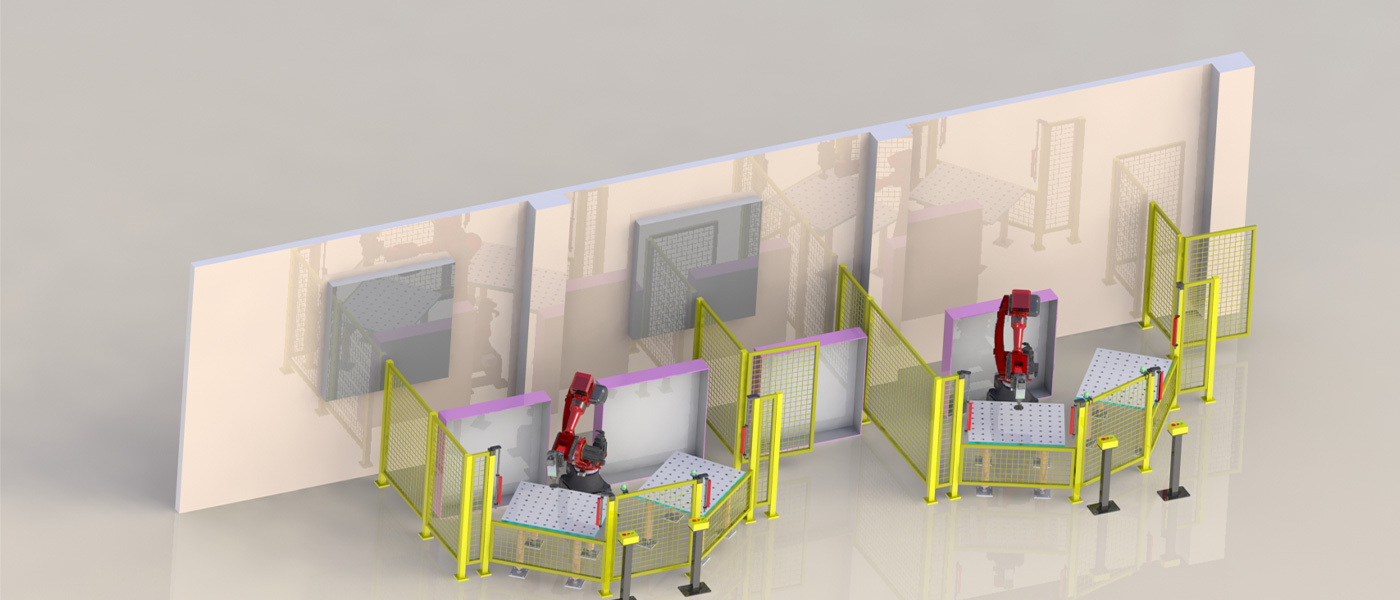

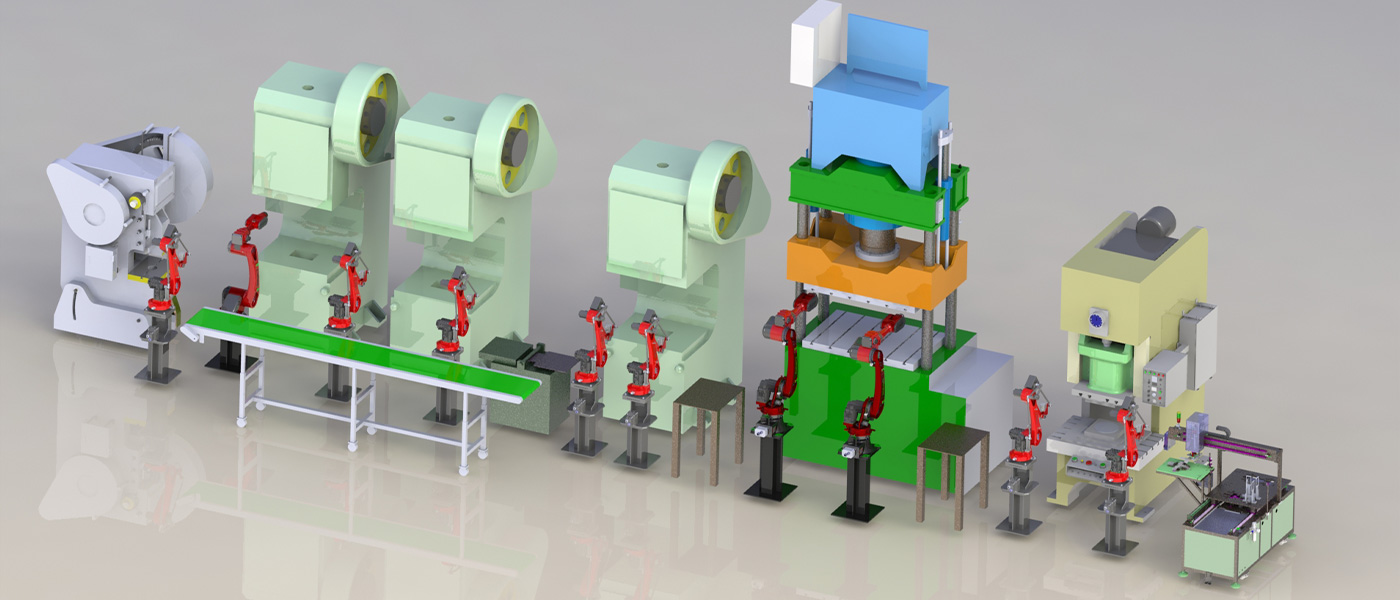

Robot Stamping Line
In the stamping line project, a two-station loading table precisely positions the product, and then 10 BRTIRPZ1508A four-axis robots automatically load and unload parts to the six stamping machines step by step. During production,two transfer tables and one flip table are also equipped. Final product will placed on the conveyor belt and handled manually.
Main product:
BRTIRPZ1508A four-axis robot

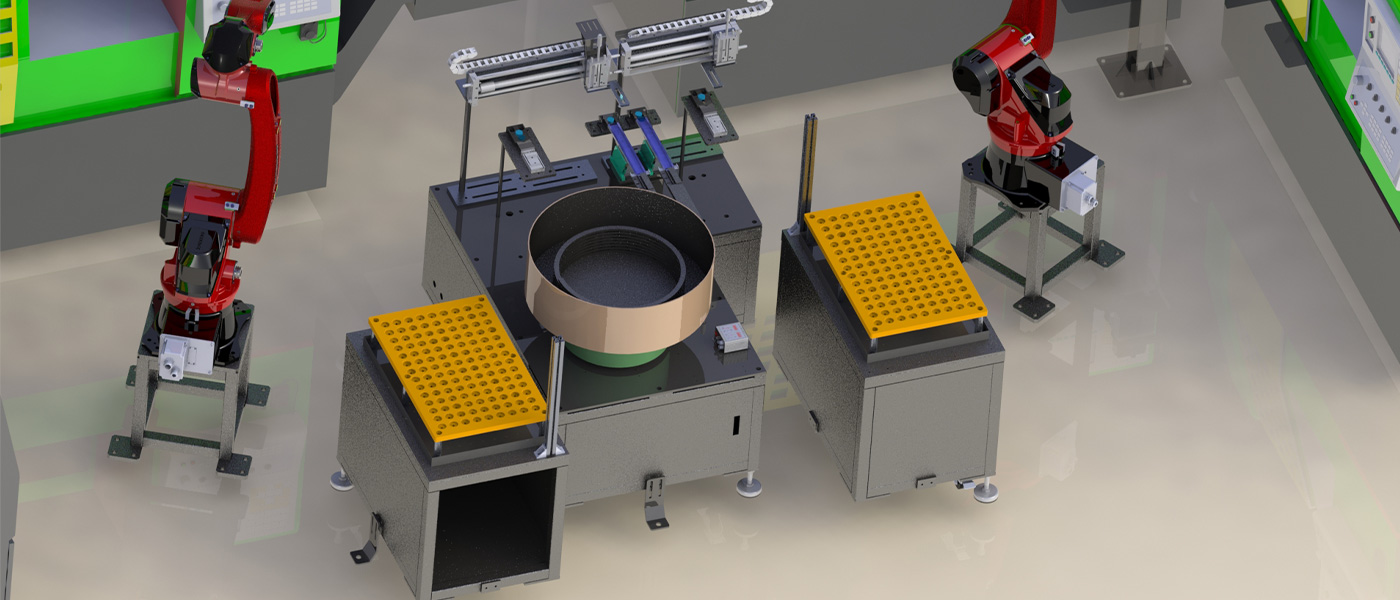

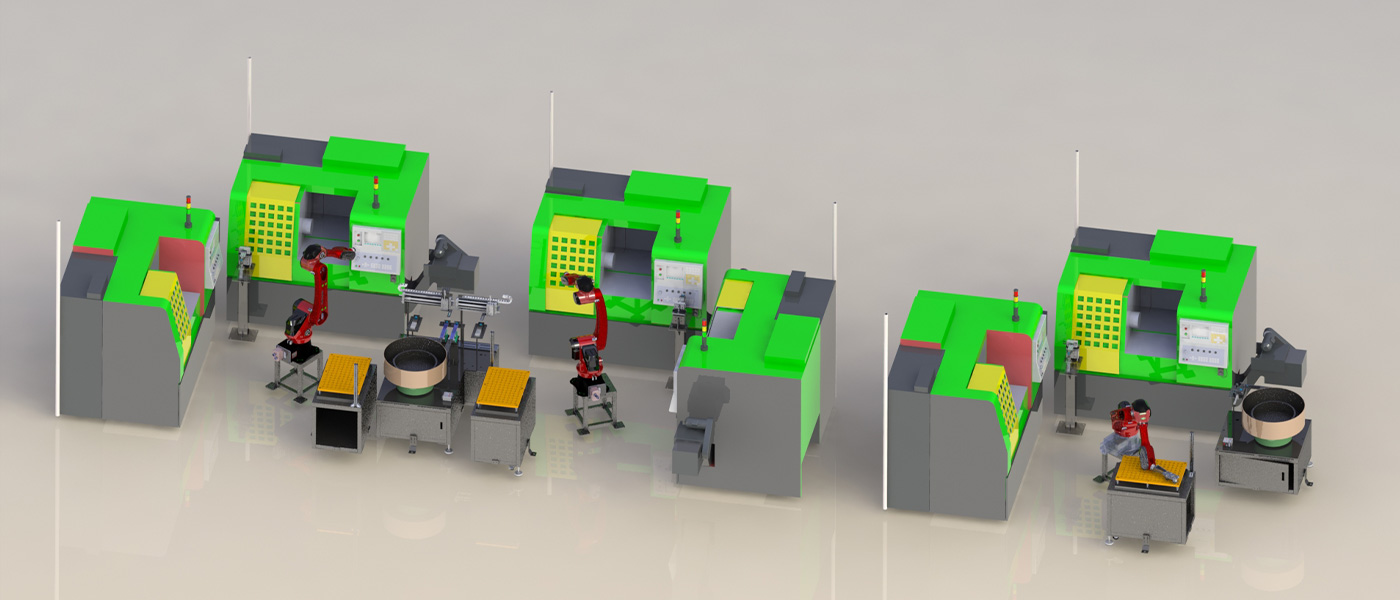

CNC Loading and Unloading Application
This project uses the BRTIRUS1510A six-axis robot for CNC loading and unloading application, equipped with automatic feeding system and flipping device.
Main product:
BRTIRUS1510A six-axis robot

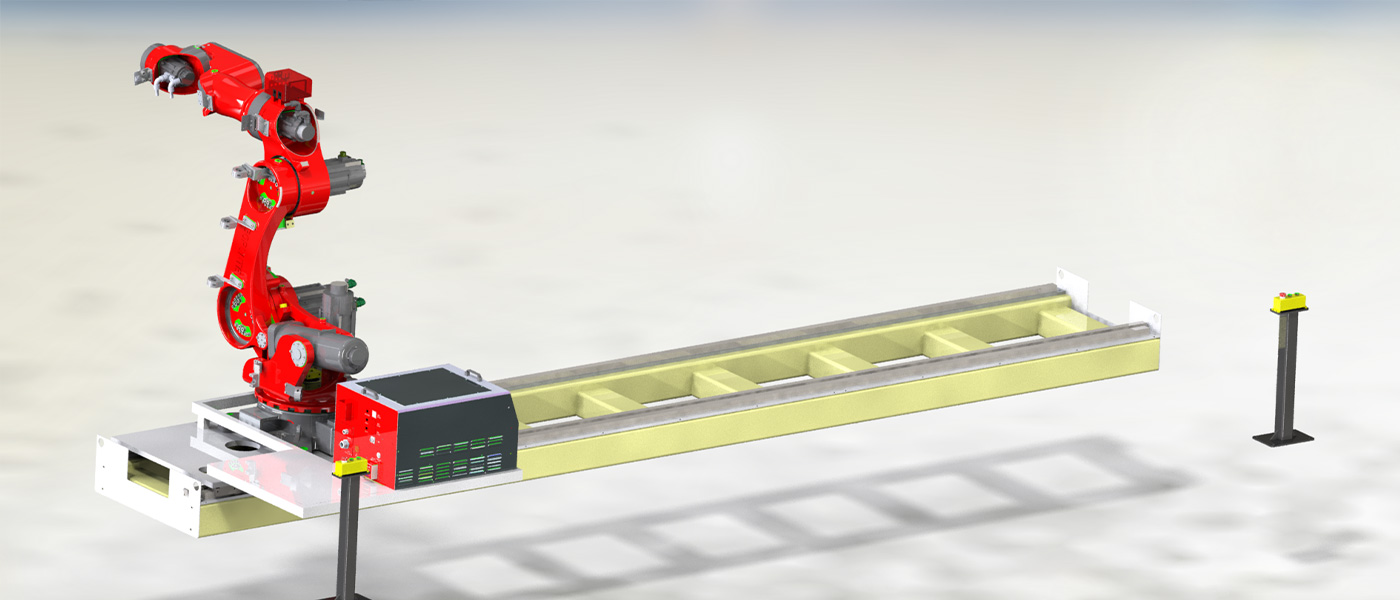

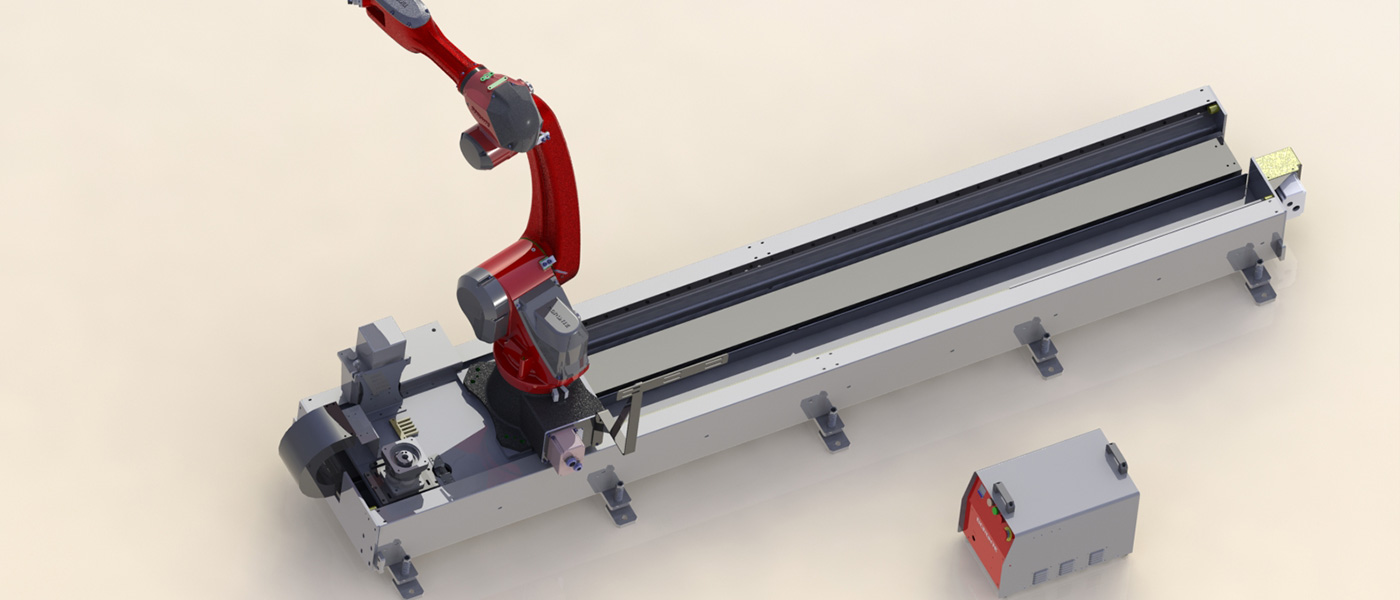

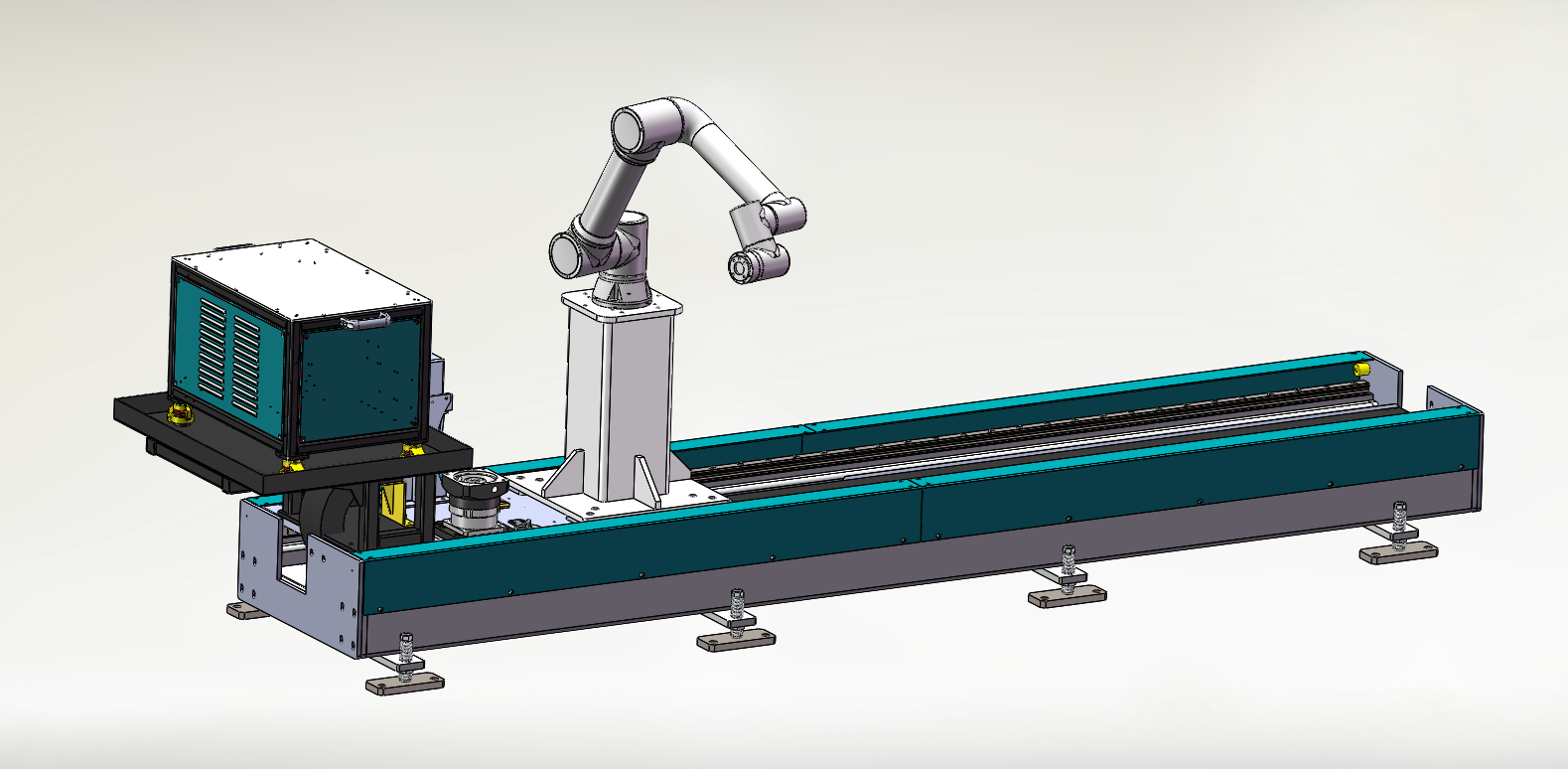

1510A Robot Work with Ground Rail
This project includes a 3800X850X320mm ground rail ,with working stroke of2500 mm ,work with a BRTIRUS1510A robot, the electrical box is placed on the ground.
Main product:
BRTIRUS1510A six-axis robot
2520B Robot Work with Ground Rail
This project includes a 6700X1940X450mm rail (working stroke 5000mm) ,work with a BRTIRUS2520B six-axis robot, the electric drive box is placed onto the ground rail.
Main product:
BRTIRUS2520B six-axis robot
